Jet Aircraft

Cat No. 10A10-S
S&H

Cat No. 10A10-2
S&H

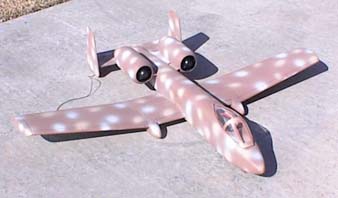

A-10 Warthog
For use with 40mm to 55mm fan units

A-10 Warthog

Cat. No 10A10-S or 10A10-2

Kit features

Precision cut balsa & ply parts

Foam core wings

ABS vacuum formed nacelles, landing gear covers

Kit available in single or twin canopy versions

SPECIFICATIONS

Wing Span - 3i in
Wing Area - 150 sq.in.
Wing loading - 20 oz./ sq. ft.
Ready weight - 20-22 oz.

Fan units
Mini 40mm to 55mm

ESC Motor control-25-45 amp

Battery Pack 3 to 4 cell
LiPoly

Functions
Elevator, Ailerons and throttle

K&A Models A-10 is designed for use with 40mm to 55mm fan units. The A-10 can be hand launched with sufficient power however for reliable launches a bungee assist is suggested.
Dr. Mad fan units both 40mm and 50mm produce plenty of power for the A-10. We recommend the 40mm over the 50mm as a 3s setup is more suited for the A-10 and at 400 watts you will have plenty of power to spare. The A-10 is very stable in flight and performs great aerobatic maneuvers. Requires a 3 channel radio with 2 to 3 mini servos depending on how you set up the ailerons and a mini receiver.

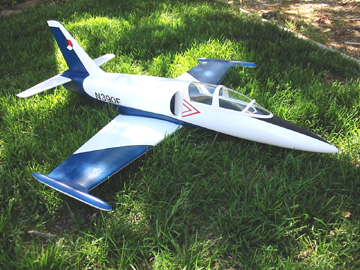

ARF L-39 full frame-6-6.jpg (80289 bytes)

Order # 10L39M
S&H

Underside showing the retracts.

CAT. No 10L39M

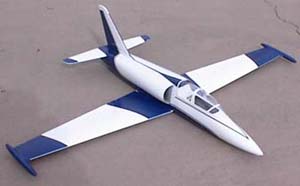

L-39 Hollow Molded
For use with 70 to 75mm fan units

L-39 ALBATROS Fast build kit
Fully Hollow Molded

Cat. No 10L39M

Pre-primered fiberglass fuselage with the vertical
fin molded in place
Pre-primered hollow molded fiberglass wings with
pre-hinged ailerons
Pre-primered hollow molded fiberglass stabs
Pre-primered hollow molded tip tanks
Fiberglass "Y"intake liner
Clear raised line canopy with pre primered
fiberglass canopy frame
ABS vacuumed formed bell mouths & wheel wells
Precision cut balsa & plywood parts
CD photo illustrated instructions
All of the fiberglass parts are fully panel lined

SPECIFICATIONS

Wing Span - 33.5 in
Wing Area - 230 sq.in.
Wing loading - 29-46 oz./ sq. ft.
Ready weight - 47-74 oz.
Airfoil - RG 14 Modified

Motors brushless
Mega 1615-2 or 3 Mini 480 fan
Hacker B40-11 or 8 Mini 480 fan

Fan units
Mini 480, 6904

ESC Motor control-45-80 amp

Battery Pack 4 to 6 cell
LiPoly

Functions
Elevator, Ailerons and throttle
Steering nose wheel and retracts are optional

Our L-39M is a completely hollow molded fiberglass airframe that is pre-primered in the molds. (Gray)

K&A Models is happy to announce the release of their new fully hollow molded fiberglass L-39 fast build kit for EDF. The L-39 is designed for use with 70 to 75mm fan units. This plane will really stand out at your flying field because it is designed for use with retracts. The L-39 takes down the runway straight smooth and stable for its take off. In the air the L-39 is very stable, predictable and yes very fast and eager to perform aerobatic maneuvers. The L-39 slows down nicely for landing approaches due to our newly designed hollow molded fiberglass wing. The kit assembles very quickly due to all of the major components having been pre built for you. There is no building in this kit just simply assembly. The landing gear blocks are pre-installed in the wings for the retracts. For the front nose gear a simple pre-marked and cut to shape nose gear tray gets installed in the nose of the plane after installing your nose retract and servo for steering. This is truly a top of the line fast build kit. The L-39 can still be used as a bungee launch airframe and if you decide to install the retracts later the retract mounting blocks are already installed for you. The L-39 requires a 3 to 5 channel radio with 3 to 5 mini servos.

"ALL MOLDED"
F-100 90mm EDF

F-100 in camo-6-6.jpg (166966 bytes)

Cat No. 10F100-M
S&H
Kit ships in two separate boxes

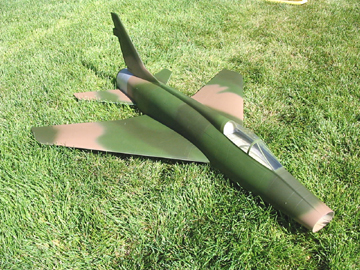

F-100 in camo-5-5.jpg (165688 bytes)

F-100 in camo-4-4.jpg (164052 bytes)

This airframe is retract ready

F-100 kit parts-1.jpg (86278 bytes)

Above photo shows the kit components for the
molded F-100

F-100 EDF

Cat No. 10F100-M

Pre-primed two piece fiberglass fuselage, center hatch & canopy hatch with panel lines
Fiberglass inlet and exhaust liners
Hollow molded wings with panel lines &
retract mounting plates installed
Hollow molded stabs with panel lines
Balsa & plywood parts package
Clear canopy
Vacuum formed ABS tail pipe & rudder
Photo CD instructions

SPECIFICATIONS

Wing Span - 41 in
Wing Area - 410 sq.in.
Wing loading -40 oz./ sq. ft.
Ready weight - 7lbs with retracts
Airfoil - SD 6060 Modified

Motor brushless
Hacker B50 with Midi 90mm fan
HET 600-33 with Midi 90mm fan
6-10 cell Lipoly

ESC motor control 70-90 amp

Control function options
Ailerons, elevator, flaps, throttle, retracts

K&A Models is happy to announce the release of their new all molded F-100 electric ducted fan jet for 90mm fans. The F-100 is a super stable airframe lending itself to almost any pilot. The use of retracts also makes the F-100 suitable for just about any of the model flying sites. Features offered are pre-installed retract mounting blocks, fully molded flying surfaces with live hinging and a fully panel lined airframe for great detail. The F-100 lends itself to a number of different power units on the market and fan units. As for performance the F-100 is fully aerobatic and at 7lbs all up weight running on an 8s battery pack with retracts it slows down extremely well on landing approaches without flap deployment. The kit assembles very fast due to most all of the parts being pre-built for you. The F-100 is an ideal plane for the intermediate and advanced pilots alike. Requires a 4 to 5 channel radio with 4-7 mini servos.

ALL MOLDED
MiG-15 EDF

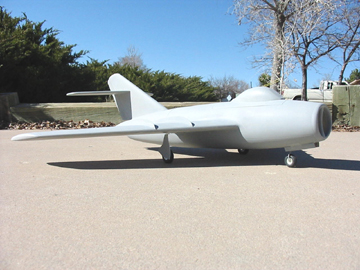

MiG-15 finished-2-2.jpg (97711 bytes)

Cat No. 10LM15-M
S&H

This airframe is retract ready

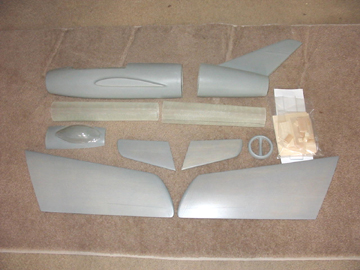

MiG-15 molded kit parts-1.jpg (86095 bytes)

Above photo shows the kit components for the
molded MiG-15

MIG-15 EDF

Cat No. 10LM15-M

Pre-primed fiberglass fuselage & hatch with panel lines
Fiberglass inlet and exhaust liners
Hollow molded wings with panel lines &
retract mounting plates installed
Hollow molded stabs with panel lines
Precision cut balsa & ply parts
Clear canopy
Vacuum formed battery tray & rudder
Plans and instructions

SPECIFICATIONS

Wing Span - 37.75 in
Wing Area - 295 sq.in.
Wing loading - 24-35 oz./ sq. ft.
Ready weight - 48-72 oz.
Airfoil - SD 6060

Motor brushless
Mega 1615-2 , 480 fan
Hacker B40-11 or 8, 480 fan
Mega 2220-3, 609 fan
Hacker B50-11 or 13, 609 fan
4-6 cell Lipoly

ESC motor control 45-90 amp

Fans-Mini-480 to HW-609
Functions
Ailerons, elevator, throttle, retracts

K&A Models is happy to announce the release of their new all molded MiG-15 electric ducted fan jet. This Mig-15 has shown up on the front cover of S&E Modeler Magazine as the Stoli and was originally designed by Steve Toschi of Northern CA. This new generation MiG-15 airframe has been updated with new all molded wings and stabilizers and the fuselage comes apart at the rear for ease of installing your power unit. Other updates are the pre-installed mounting plates for use with the MAP micro retracts as well as a fully panel lined airframe. The MiG-15 lends itself to a number of different power units on the market. As for performance the MiG-15 is very stable in flight and performs nice clean aerobatic maneuvers. With the addition of the retractable landing gear the MiG-15 seems to be twice as fun to fly. The kit assembles very fast due to most all of the parts being pre-built for you. The MiG-15 is an ideal plane for the intermediate and advanced pilots alike. Requires a 3 to 4 channel radio with 3-4 mini servos and mini receiver.

Cat. No 10A6
S&H

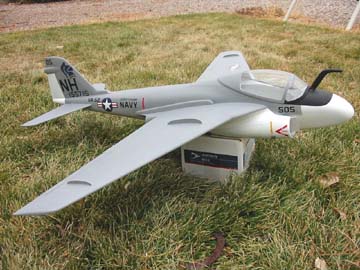

A-6 finished-1-3.jpg (33060 bytes)

For use with mini 480 or 609 size fans

The A-6 is designed to use just one fan to keep the power unit cost
reasonable. Our prototype is running on the Mega 22-20-3, 70 amp
Jeti ESC. We test flew the plane on a 4 cell Polyquest 3700 pack
which produced right around 450 watts or so. Now we have 2-3 cell
Polyquest 3700 packs in series. We are getting above 1100 watts
at around 50 amps.

A-6 Intruder

Cat. No 10A6

Pre-primed fiberglass fuselage
Pre-primed hollow molded wings
Fiberglass intake & exhaust
liners
Clear raised line canopy
ABS vacuumed formed
accessories
Precision cut balsa
& Plywood parts
CD photo illustrated instructions

SPECIFICATIONS

Wing Span - 44.75 in
Wing Area - 317 sq.in.
Wing loading - 24-26 oz./ sq. ft.
Ready weight - 54-58 oz.
Airfoil - SD 6060

Motors brushless
Mega 1615-3
Hacker B40
Mega 22-20-3

Fan units
Mini 480
or 609

ESC Motor control-50-70 amp

Battery Pack 4 to 6 cell
LiPoly

Functions
Elevator, Ailerons & throttle

K&A Models is happy to announce the release of their new A-6 Intruder kit for EDF. The A-6 is designed for use with the mini 480 or 609 fan unit. This plane will really stand out at your flying field. The A-6 launches off the rails straight and smooth with very stable flight characteristics. The kit assembles very quickly due to the fully molded fiberglass fuselage along with hollow molded fiberglass wings as well as pre-cut to shape balsa and plywood parts. This is truly one of a kind. The A-6 requires a 3 channel radio with 3 to 4 mini servos and mini receiver.

Cat. No 10V1
S&H

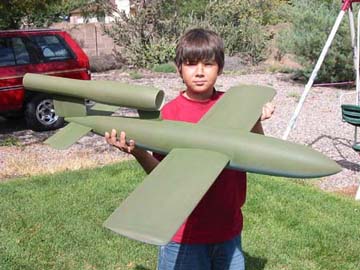

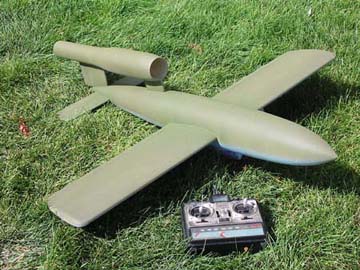

V-1 BUZZ BOMB
For use with mini 480 or 505 fans

V-1

Cat. No 10V1

Pre-primed fiberglass fuselage
with slip on nose
Pre-primed fiberglass motor
nacelle with slip on tail pipe
Fiberglass intake liner
Pre-primed hollow molded wings
Precision cut balsa & plywood parts
Plans & instructions

SPECIFICATIONS

Wing Span - 37 in
Wing Area - 259 sq.in.
Wing loading - 22-25 oz./ sq. ft.
Ready weight - 40-45 oz.
Airfoil - NACA

Motors brushless
Mega 1615-3
Hacker B40

Fan units
Mini 480
or 505

ESC Motor control-50-70 amp

Battery Pack-4-6 cell
LiPoly

Functions
Elevator, Ailerons & throttle

K&A Models is happy to announce the release of their new V-1 Buzz Bomb kit for EDF. The V-1 is designed for use with the mini 480 or 505 fan units. This is an ideal first EDF plane. The NACA airfoil used along with the constant cord wing configuration makes for a very stable and easy plane to fly. The tail pipe on the motor nacelle slips off for easy installation of your power unit along with a slip on nose making radio installation a breeze. The kit assembles very quickly due to the fully molded fiberglass fuselage and motor nacelle along with hollow molded fiberglass wings as well as pre-cut to shape balsa and plywood parts. This is truly an outstanding kit. The V-1 requires a 3 channel radio with 3 mini servos and mini receiver.

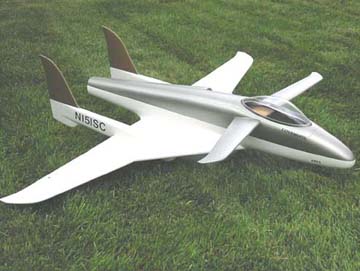

RUTAN ARES
With main retract mounting plates pre-installed
For use with mini 480 fan

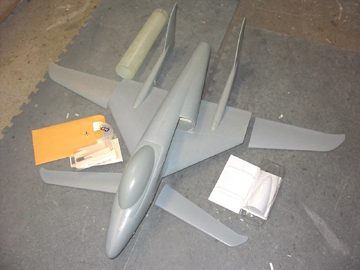

Molded ARES kit parts-1.jpg (85595 bytes)

Cat.No 10ARES-M

This model is retract ready

Rutan ARES

Cat. No 10ARES-P

Pre-primed fiberglass fuselage
with inboard wing molded in place
Pre-primed fiberglass tail booms
Fiberglass intake & exhaust liner
Pre-primed fiberglass canopy hatch
Pre-sheeted outboard wing panels
Pre-sheeted canard
Clear canopy
Precision cut balsa
& Plywood parts
Plans & instructions

SPECIFICATIONS

Wing Span - 46.5 in
Wing Area - 320.55 sq.in.
Wing loading - 27-29 oz./ sq. ft.
Ready weight - 55-65 oz.
Airfoil - ARES

Motors brushless
Mega 1615-2 -480 fan
Hacker B40-480 fan

ESC Motor control-50-70 amp

4-8 cell LiPoly

Functions
Elevons, throttle

Cat. No 10ARES-M

Pre-primed fiberglass fuselage
with inboard wing molded in place
Pre-primed fiberglass tail booms
Fiberglass inlet & exhaust liners
Pre-primed fiberglass canopy hatch
Hollow molded outboard wing panels
Hollow molded forward canard
Pre-installed retract mounting
blocks in main fuselage
Clear canopy
Precision cut balsa and ply parts
Plans with photo instructions

K&A Models is happy to announce the release of their new RUTAN ARES kit for EDF. The ARES is designed for use with the mini 480 fan. Ideally you want to fly an EDF jet at or above 400 watts for jet like performance. The canard configuration of the ARES makes for an extremely stable plane in flight and has no bad habits we can see thus far. The kit assembles very quickly due to the fully molded fiberglass parts and pre-sheeted wings and canard as well as pre-cut to shape wood parts. The kit even comes with a pre-installed main wing spar and hard points for the tail booms. This is truly an outstanding kit. The ARES requires a 3 to 4 channel radio with 2 metal geared mini servos and mini receiver.

Cat. No 10F84-P
S&H

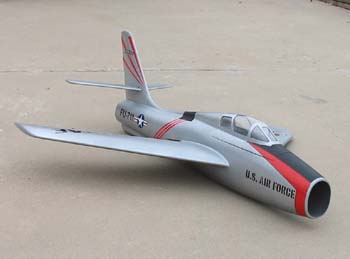

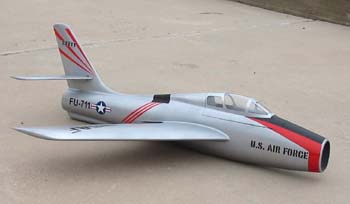

F-84F THUNDERSTREAK
For use with mini 480 or 609 fans

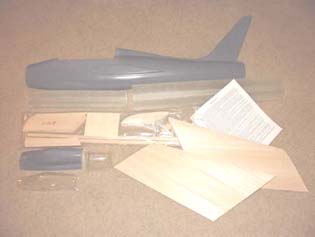

F-84-P parts.jpg (12372 bytes)

Above photo. Kit parts of our 10F84-P kit.

REPUBLIC F-84F

Cat. No 10F84-P

Pre-primed fiberglass fuselage &
canopy hatch (GRAY)
Fiberglass intake & exhaust liners
Pre-sheeted foam wings
Clear canopies
Precision cut balsa & plywood parts
Plans & instructions

SPECIFICATIONS

Wing Span - 33 in
Wing Area - 280 sq.in.
Wing loading - 24-27 oz./ sq. ft.
Ready weight - 48-54 oz.
Airfoil - SD-6060

Motors brushless
Mega 1615-2 -480 fan
Hacker B40-480 fan
Mega 2220-3-609 fan
Hacker B50-609 fan

ESC Motor control-50-70 amp
Battery Pack- 3 to 4 cell
LiPoly
Fans-Mini 480 or 609

Functions
Ailerons, elevator, throttle

K&A Models is happy to announce the release of their new F-84F THUNDERSTREAK kit for EDF. The F-84 is designed for use with the mini 480 fan or HW 609 fan. Ideally you want to fly an EDF jet at or above 400 watts for jet like performance. This type of performance can be reached using just a Kontronics fun 480 motor with a mini 480 fan running on 10 cells. Up to around 700 watts of power can be used with the F-84. The F-84 is extremely stable in flight and has no bad habits we can see thus far. The kit assembles very quickly due to the fully molded fiberglass fuselage with vertical fin molded in place and pre-cut to shape parts. The F-84 kit can also be ordered with pre-sheeted wings reducing the building time yet further. The F-84 requires a 3 to 4 channel radio with 3 mini servos and mini receiver.

Cat No. 10262-P

For use with the WeMoTec 505 or
Wattage fans

Me-262 EDF

Cat No. 10262-P

Pre-primed fuselage (GRAY)
Pre-sheeted foam wings
Pre-primed nacelles (GRAY)
Fiberglass inlet & exhaust liners
Clear canopy
Precision cut balsa & plywood parts
Plans & instructions

SPECIFICATIONS

Wing Span -44 in
Wing Area - 265 sq.in.
Wing loading - 27 oz./ sq. ft.
Ready weight - 48-50 oz.
Airfoil - SD 6060

Motor brushless
Mega 1615-2 Vasa or Wattage fan
Mega 1615-3 Vasa or Wattage fan
Astro 020 Vasa or Wattage fan
3-4 cell LiPoly

ESC control brushless 50-70 amp

Fans-Vasa 65mm or Wattage

Functions
Ailerons, elevator, throttle

K&A Models is happy to announce our new Me-262 EDF jet. The Me-262 is a outstanding performing EDF jet. Flown on the 65mm Vasa or Wattage fans using just a speed 400 motors on a 10 cell CP-1700 pack this little jet gets up an goes. The Me-262 is very stable in flight and fly's aerobatic maneuvers with ease. The kit builds very fast due to the fully molded fiberglass fuselage with the vertical fin molded in place as well as molded nacelles. The wings are foam cores that you sheet with 1/16" balsa sheeting provided. Requires a 3 to 4 channel radio with 3 mini servos and mini receiver.

Cat No. 10F86-P

Park size EDF's
For use with the Vasa 65mm or Wattage fans

Updates on the Park Jets in use with the WeMoTec 505 fan
Mega 16/15/3 with 3s Li-poly=15-16 amps at 175
Mega 16/15/4 with 4s Li-poly=13-14 amps at 225 watts
Medusa 028-032-3400 with 3s Li-poly =20-22amps at 225 watts

F-86 Sabre

Cat No. 10F86-P

Pre-primed fuselage
& canopy hatch (GRAY)
Pre-sheeted foam wings
Fiberglass inlet & exhaust liners
Precision cut balsa & plywood parts
Clear canopy
ABS vacuum formed front bellmouth
Plans & instructionsSPECIFICATIONS

Wing Span - 31 in
Wing Area - 162.75 sq.in.
Wing loading - 22 oz./ sq. ft.
Ready weight - 24-25 oz.
Airfoil - SD 6060 Mod.

Motor brushless
Mega 1615-2 Vasa or Wattage fan
Mega 1615-3 Vasa or Wattage fan
Astro 020 Vasa or Wattage fan
3 LiPoly

ESC control brushless 30-70 amp

Fans-Vasa 65mm, Wattage, WeMoTec 505

Functions
Ailerons, elevator, throttle

K&A has broke the barrier on park size EDF jets. K&A Models is happy to announce our F-86 Sabre EDF jet. The F-86 is a outstanding performing park size EDF jet. Flown on the 65mm fan on a 3 cell 2100 pack this little jet gets up an goes. The F-86 is very stable in flight, can be hand launched and fly's aerobatic maneuvers with ease. Requires a 3 to 4 channel radio with 3 mini servos and mini receiver.

Cat No. 10LM15-P

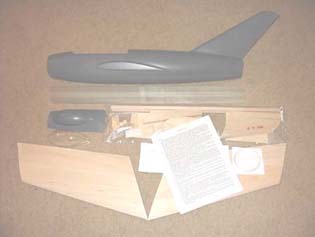

Mig-15-P parts.jpg (12535 bytes)

Above photo. Kit parts of our 10LM15-P kit.

MIG-15 EDF

Cat No. 10LM15-P

Pre-primed fiberglass fuselage & hatch
Fiberglass inlet and exhaust liners
Pre-sheeted foam core wings
Precision cut balsa & ply parts
Clear canopy
Vacuum formed battery tray & bell mouth
Plans and instructions

SPECIFICATIONS

Wing Span - 37.75 in
Wing Area - 295 sq.in.
Wing loading - 24-27 oz./ sq. ft.
Ready weight - 48-54 oz.
Airfoil - SD 6060

Motor brushless
Mega 1615-2 , 480 fan
Hacker B40-11 or 8, 480 fan
Mega 2220-3, 609 fan
Hacker B50-11 or 13, 609 fan
3-6 cell LiPoly

ESC motor control 40-90 amp

Fans-Mini-480 to HW-609
Functions
Ailerons, elevator, throttle

K&A Models MiG-15 electric ducted fan jet. This Mig-15 has shown up on the front cover of S&E Modeler Magazine as the Stoli and was originally designed by Steve Toschi of Northern CA. The MiG-15 lends itself to a number of different power units on the market. The MiG-15 is very stable in flight and performs aerobatic maneuvers with ease. The kit builds very fast due to the fully molded fiberglass fuselage with molded inlet and exhaust liners, pre-cut to shape tail surfaces and pre-sheeted foam core wings. The MiG-15 is an ideal plane for the intermediate and advanced pilots alike. Requires a 3 to 4 channel radio with 3 mini servos and mini receiver.

Cat No. 10SMIG-P

Park size EDF's
For use with the Vasa 65mm or Wattage fans

MIG-15

Cat No. 10SMIG-P

Pre-primed fuselage & canopy hatch
Pre-sheeted wings
Fiberglass inlet & exhaust liners
Clear canopy
Precision cut balsa & plywood parts
Plans & instructions

SPECIFICATIONS

Wing Span - 31 in
Wing Area - 186 sq.in.
Wing loading - 19 oz./ sq. ft.
Ready weight - 24-25 oz.
Airfoil - SD 6060 Mod.

Motor brushed
Speed 400 7.2 volt Vasa or Wattage fan, 10
cell NiMH or 2-3 LiPoly

Motor brushless
Mega 1615-2 Vasa or Wattage fan
Mega 1615-3 Vasa or Wattage fan
Astro 020 Vasa or Wattage fan
3 LiPoly

ESC control brushless 30-70

Fans-Vasa 65mm or Wattage
Functions
Ailerons, elevator, throttle

K&A Models is happy to announce the upcoming release of their new MIG-15 EDF. Well we didn't feel it would be much fun just flying around an F-86 with nothing to chase so we did the right thing and made a MiG-15 to match. Just like the F-86 the MiG-15 is a great performer in the air. Stable in flight, easy to hand launch and performs great aerobatic maneuvers. So now you and a friend can see just who is the best pilot. Requires a 3 to 4 channel radio with 3 mini servos and mini receiver.

Cat No. 10L39-P

L-39-P parts.jpg (12624 bytes)

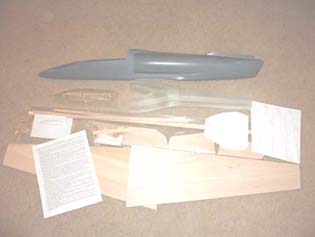

Above photo. Kit parts of our 10L39-P kit

L-39 ALBATROS

Cat No. 10L39-P

Pre-primed fuselage (Gray)
Pre-sheeted wings
Fiberglass inlet & exhaust
liners
Vacuum formed tip tanks
& bellmouth
Clear raised lined canopy
Precision cut balsa &
plywood parts
Plans & instructions

SPECIFICATIONS

Wing Span - 48 in
Wing Area - 300 sq.in.
Wing loading - 18-23 oz./ sq. ft.
Ready weight - 45-50 oz.
Airfoil - RG 14

Motor brushless
Mega 1615-2 , 480 fan
Hacker B40-11 or 8 , 480 fan
Mega 2220-3, 609 fan
Hacker B50-11 or 13, 609 fan
3-6 LiPoly

ESC motor control 40-90 amp

Fans-Kyosho
WeMoTec Mini 480 an 609
Functions
Ailerons, elevator, throttle

K&A's L-39 Albatros with the sport wing is super stable in flight. Smooth and straight off the launch through throttle up to perform great aerobatic manuevers. Construction is easy and quick due to the pre-sheeted wings and molded fiberglass fuselage parts. The L-39 performs great on just a stock Mini 480 fan on a 3s LiPoy. Requires a 3 to 4 channel radio with 3 mini servos and mini receiver.

Cat No. 10F9F-P

F9F PANTHER
A NEW BREED OF SPEED 400
PLANES ARE HERE

F9F PANTHER
SPEED 400

Cat No. 10F9F-P

Pre-primed fuselage (Gray)
Pre-sheeted wings
Vacuum formed wing tip tanks & canopy
hatch
Clear raised lined canopy
Precision cut balsa & plywood parts
Plans & instructions

SPECIFICATIONS

Wing Span - 26.5 in
Wing Area - 136 sq.in.
Wing loading - 19-20 oz./ sq. ft.
Ready weight - 18-19 oz.
Airfoil -SD 6060

Motor brushed
Speed 400 6 volt with 4.7x4.7 prop
7-8 cell NiMH or 2 cell LiPoly

Motor brushless
Mega 1615-3 with 4.7x4.7 prop
Mega 1615-4 with 5.5x5.5 prop
Astro 020 with 5 x 5 prop
3 cell LiPoly

Functions
Ailerons, elevator, throttle
rudder optional

K&A's F9F PANTHER for direct drive speed 400 size motors. This is a new breed for the speed 400 class. The PANTHER comes with an epoxy fiberglass fuselage that has the inboard section of the wings and the vertical fin molded in place. The tail surfaces come to you pre-cut to shape. We have also added vacuum formed accessories such as tip tanks, canopy hatch with and clear canopy, battery tray and even a set of vacuum formed inlets to complete that scale look. The best thing is how well the PANTHER flys. The PANTHER is very stable in flight and performs great aerobatic maneuvers. The small size of the PANTHER makes it a great school yard flier. Pick up your PANTHER today and have one of the best looking prop jets around. Requires a 3 to 4 channel radio with 3 mini servos and mini receiver.

Copyright ©1998 K&A Models Unlimited All rights reserved. Revised: 02/26/20 .

Copyright ©1998 K&A Models Unlimited
All rights reserved.
Revised: 02/26/20 .
